20W -100W Handheld Laser Marking Machine Portable Laser Coder Machine
| Price: | negotiable |
| العبوة القياسية: | العبوة القياسية |
| Delivery period: | 5-7 يوم عمل |
| طريقة الدفع: | TT ، L / C ، ويسترن يونيون |
معلومات مفصلة
مكان المنشأ
ووهان ، الصين
اسم العلامة التجارية
COTAJET
إصدار الشهادات
CE,Rohs,SGS
رقم الموديل
CL800A
مادة:
وسم الليزر المحمول
معرف المنتج:
CL800A
علامات المنتج:
آلة النقش بالليزر الليفي
قوة الليزر:
20 واط / 30 واط / 50 واط / 100 واط
حياة الليزر:
＞ 100،000 ساعة
مزود الطاقة:
90 فولت ~ 240 فولت 50/60 هرتز
استهلاك الطاقة:
300-500 واط
نطاق العلامات:
75 × 75 ملم (قياسي)
خياري:
150 × 150 مم، 300 × 300 مم
إبراز:
20W Handheld Laser Marking Machine,100W Handheld Laser Marking Machine,Portable Laser Coder Machine
,100W Handheld Laser Marking Machine
,Portable Laser Coder Machine
وصف المنتج

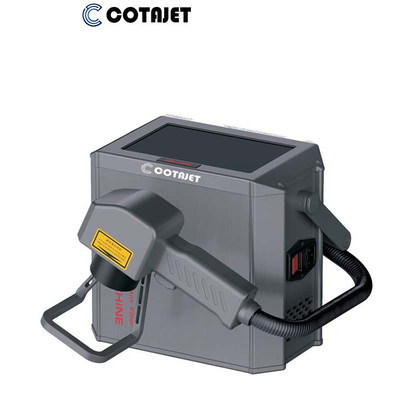

20W -100W Handheld Laser Marking Machine Portable Laser Coder Machine
The Portable Handheld Fiber Laser Marking Machine is an intelligent system designed for industrial applications including marking on oil/gas pipelines, firearms, nameplates, plastic/rubber parts, and seals. Featuring wireless connectivity via WIFI/Bluetooth/USB/APP for remote control, this lightweight solution is ideal for IoT asset management.
Product Specifications
| Material | Portable Laser marking |
|---|---|
| Product ID | CL800A |
| Product Tags | Fiber Laser Marking Machine |
| Laser Power | 20W/30W/50W/100W |
| Laser Life | ＞100,000 hours |
| Power Supply | 90V~240V 50/60HZ |
| Power consumption | 300-500W |
| Marking Range | 75X75mm(Standard) |
| Optional | 150X150mm,300X300mm |
Key Features
- High-precision 2D scanning head with laser etching completed within 20s
- Compact design (≤6kg total weight, 0.8kg marking head) for portability
- Intuitive touch screen operation with red light preview and one-key marking
- Supports multiple barcode types including QR, CODE128, and Data Matrix
- Emergency stop function with material detection software for safety
- Rechargeable battery provides 4 hours working time (8 hours standby)
- Optional carrying solutions: dual shoulder straps or rolling luggage
- Remote control capability via Wi-Fi, Bluetooth, and USB connections
Technical Parameters
| Parameter | 20W | 30W |
|---|---|---|
| Machine Material | All aluminum sandblasting oxidation | |
| Laser Wavelength | 1064nm | |
| Output Power | ≥23W | ≥34W |
| Marking Speed | ≤12000mm/s | |
| Controller | 10.2 inch touch controller | |
| Minimum Line Width | 0.012mm | |
| Marking Range | 110mm*110mm (optional) | |
| Power Supply | 220V/50HZ | |
| Net Weight | 8kg | |
| Operating Environment | 0℃－45℃; humidity ≤95% | |
Product Images
